A homeowner in Seminole, FL called about what appeared to be a short circuit issue in their electrical panel. However, our comprehensive inspection revealed several opportunities to modernize the home’s electrical system to current safety standards. We installed a whole-house surge protector, upgraded five smoke detectors, and addressed grounding system improvements that brought the 150-amp GE panel up to NEC 2023 requirements.
The Problem
The homeowner contacted us about a suspected short circuit in their electrical panel. Additionally, they mentioned they had attempted to replace a bathroom outlet but weren’t able to complete the work properly.
“Client has short circuit in panel”
Investigation
Ryan conducted a thorough safety inspection that uncovered several areas where the home’s electrical system predated current code requirements. The investigation revealed backstabbed outlet and switch connections – a common installation method in homes wired before 2005. Furthermore, one kitchen outlet lacked GFCI protection, and the home had no whole-house surge protection.
The grounding system showed its age, reflecting standards from when the home was originally built. Additionally, the pool equipment needed GFCI protection to meet current safety standards. In the electrical panel itself, we found missing bushings and areas where AFCI protection could be added for enhanced safety.

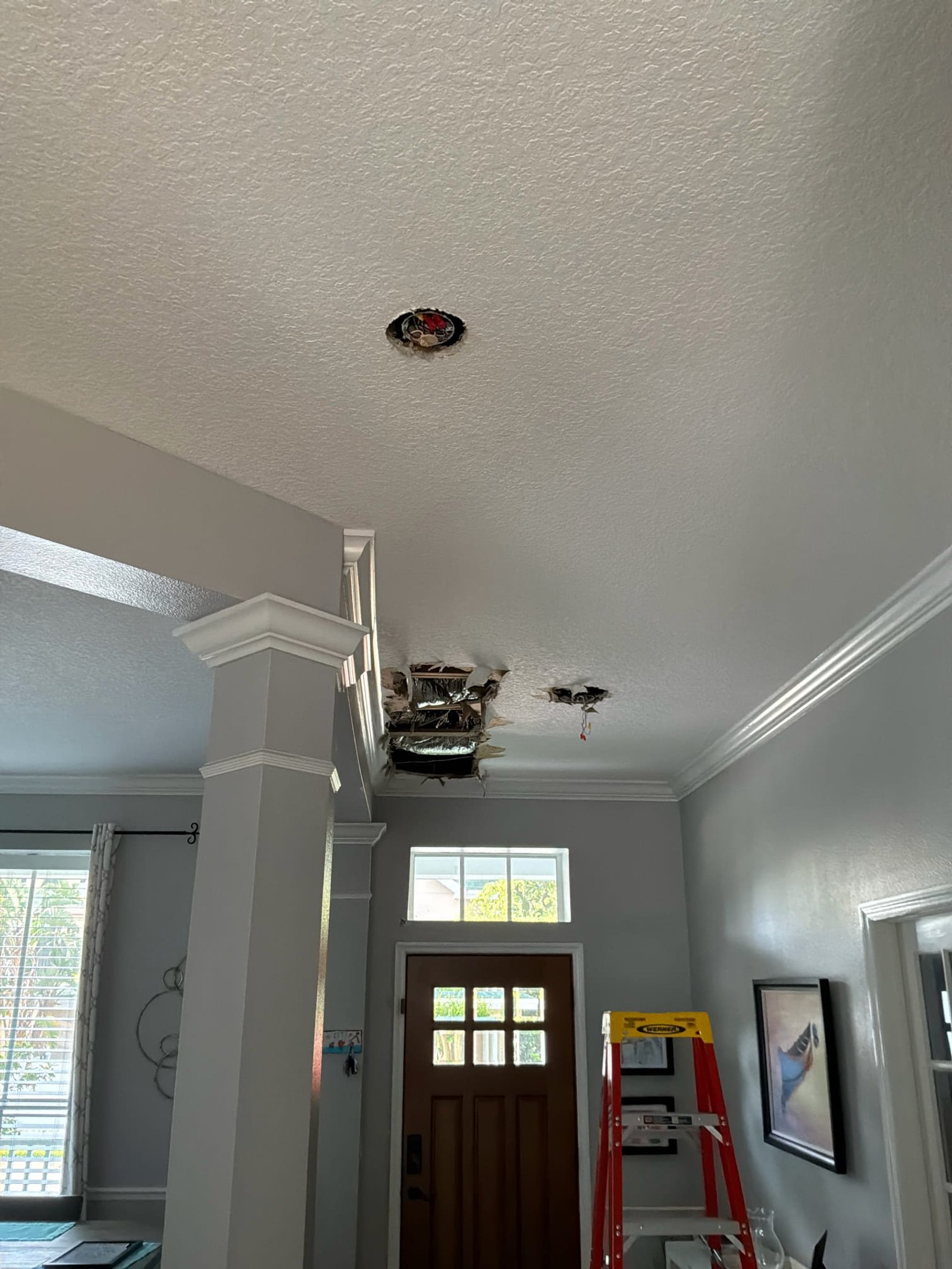

Notably, the home was missing smoke detectors in required areas, and the master bathroom needed GFCI protection to align with current code requirements.
What We Fixed
Our team installed a PSP Vortex 120 kA whole-house surge protector directly into the existing GE panel. This device provides comprehensive protection against power surges from lightning and utility switching.

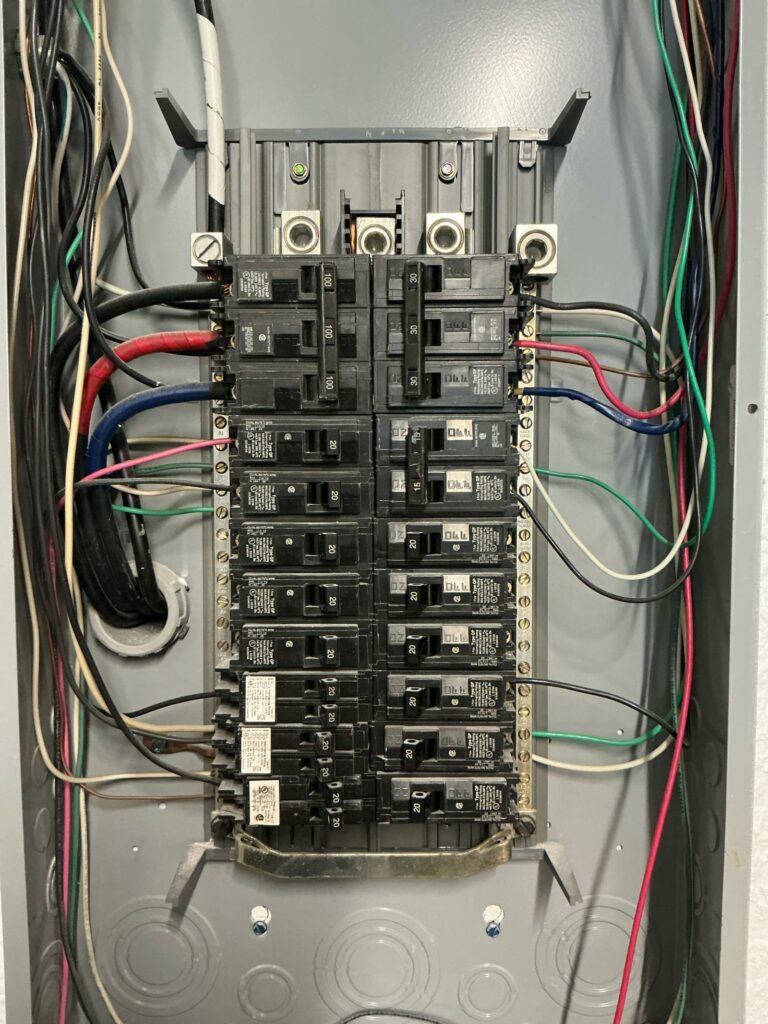

We replaced several breakers, including Square D HomeLine 15-amp single pole and 40-amp double pole units, along with a GE THQP 30-amp double pole breaker. Each replacement used proper connections and sizing for the protected circuits.

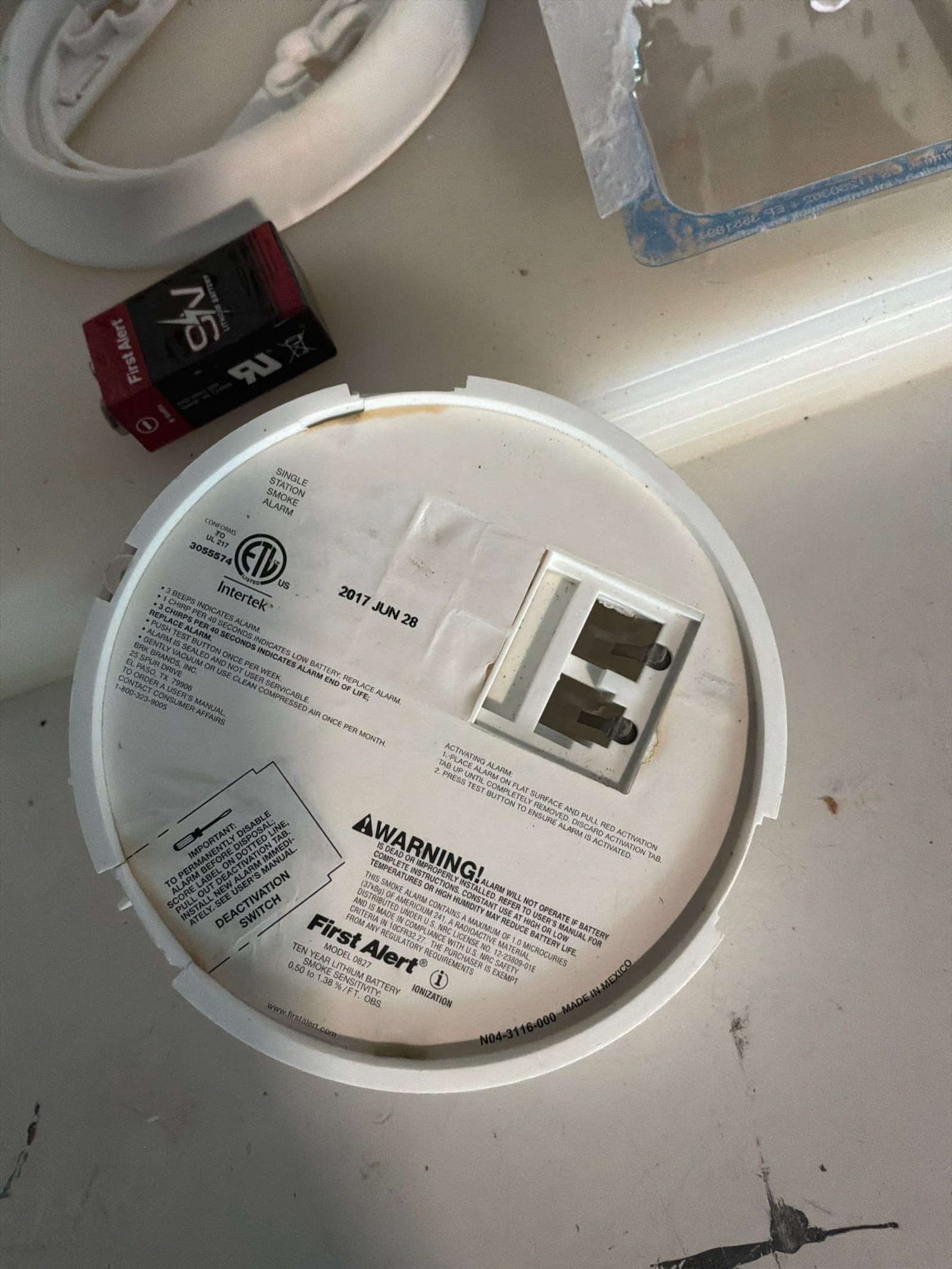

Five smart smoke/carbon monoxide detectors with 10-year sealed lithium batteries were installed throughout the home. These interconnected units provide comprehensive fire and CO detection with smartphone connectivity for enhanced safety monitoring.

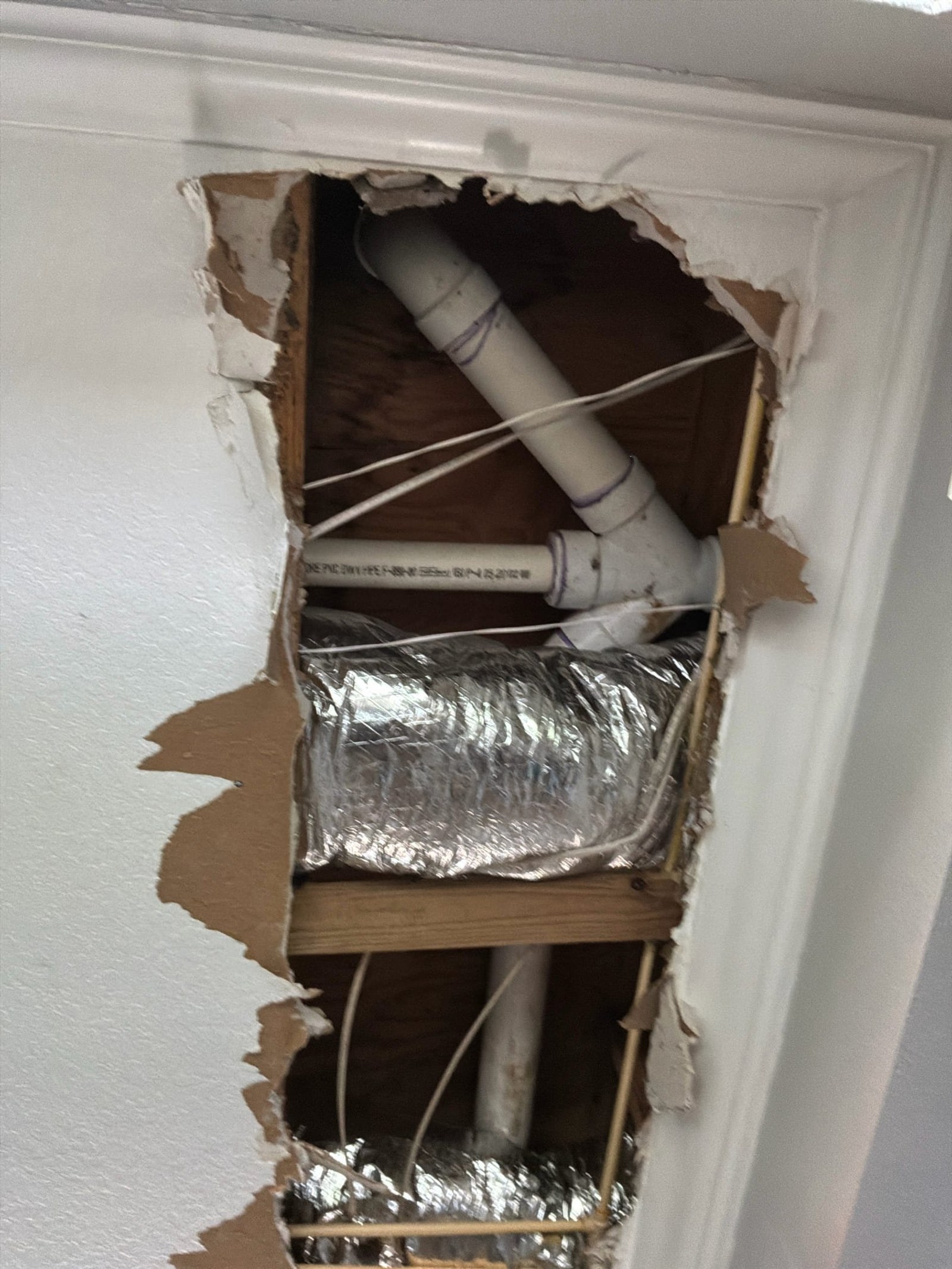

For the bathroom outlet issue the homeowner had struggled with, we installed a tamper-resistant 15-amp receptacle in a new single-gang remodel box with proper grounding connections. We also replaced a decorator switch to ensure reliable operation.
Why This Matters for Homeowners
Many of the conditions we addressed were perfectly acceptable under the electrical codes in effect when this home was built. However, NEC updates over the years have introduced new safety requirements that significantly reduce risks for modern families.
Surge protection has become essential as homes now contain thousands of dollars worth of sensitive electronics. The PSP Vortex system we installed protects everything from HVAC controls to smart home devices against voltage spikes.
Modern smoke detector requirements emphasize interconnected systems with longer-lasting power sources. The 10-year lithium batteries eliminate the late-night chirping from dying 9-volt batteries, while smartphone connectivity ensures homeowners stay informed even when away from home.
GFCI protection in kitchens, bathrooms, and pool areas prevents shock incidents by detecting ground faults and shutting off power within milliseconds. These requirements have expanded significantly since the 1990s as we’ve learned more about electrical safety in wet locations.
Code Compliance Cited in This Job
Every fix above maps to a specific section of NEC 2023. Each card links to NFPA’s public NEC index.
GFCI Protection Requirements
Current code requires GFCI protection in bathrooms, kitchens, and pool areas. The kitchen outlet and master bathroom installations we completed bring these areas into compliance with current safety standards. NFPA reference ›
AFCI Protection
Arc-fault circuit interrupters are now required in most living spaces to detect dangerous arcing conditions. The panel updates we performed create opportunities to add this protection in the future. NFPA reference ›
Surge Protective Device Installation
The PSP Vortex whole-house surge protector installation follows NEC requirements for proper grounding, disconnect means, and overcurrent protection to ensure effective surge suppression. NFPA reference ›
Conductors Entering Boxes and Fittings

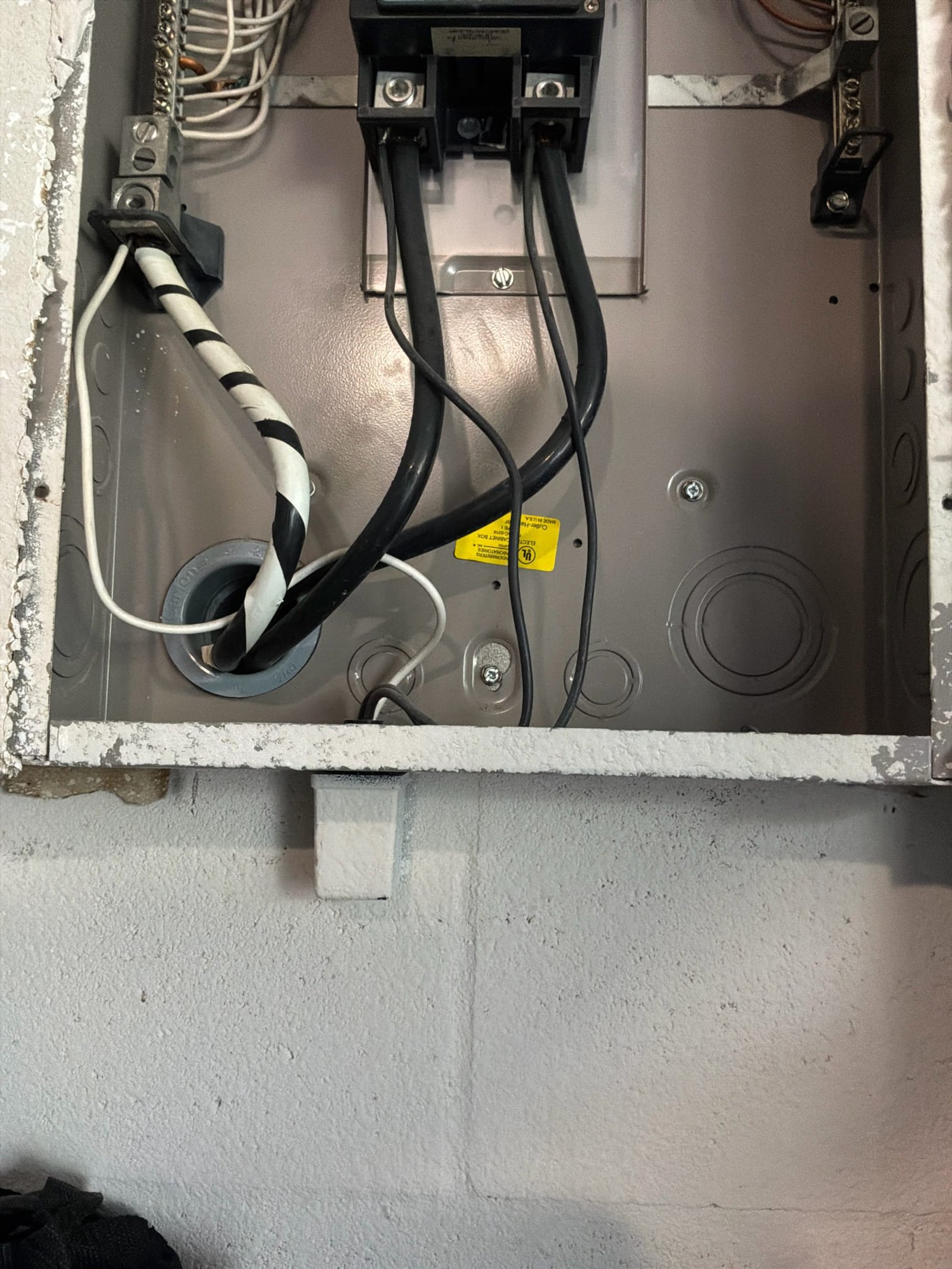

The missing bushings in the panel we identified relate to proper wire protection where conductors enter enclosures. Modern installations require these protective elements to prevent wire damage. NFPA reference ›
Space in Enclosures
Panel modifications must maintain proper spacing and wire protection. The breaker replacements and surge protector installation were completed with attention to these clearance requirements. NFPA reference ›
Common Questions
Questions homeowners ask after seeing this kind of work.
How often should I have my electrical system inspected for safety updates?
We recommend yearly electrical inspections for most homes, with more frequent checks for older properties or those that have weathered recent storms. Homes built before 1990 often benefit from inspections twice per year since electrical codes have evolved significantly. If you’re unsure about your home’s current safety status, our team can schedule a comprehensive inspection to identify any areas worth updating.
What are backstabbed connections and why do they need replacing?
Backstabbed connections use spring-loaded terminals instead of screw connections for outlets and switches. This was a common time-saving method before 2005, but the spring tension can weaken over time, creating loose connections and flickering. Replacing them with screw-terminated connections provides a more durable, long-term solution. If you’re experiencing intermittent electrical issues, book a diagnostic visit to check your connections.
Do I really need a whole-house surge protector if I have power strips?
Absolutely. Power strips provide point-of-use protection, but a whole-house surge protector like the PSP Vortex system defends your entire electrical system, including hardwired appliances, HVAC equipment, and smart home devices. It’s your first line of defense against utility surges and lightning-induced voltage spikes. Want to learn if your home would benefit from surge protection? Schedule a consultation with our team.
How long do the new 10-year smoke detectors actually last?
The sealed lithium batteries in these smart detectors are designed to power the unit for the full 10-year lifespan of the detector itself. Unlike traditional 9-volt battery detectors that chirp when batteries weaken, these units eliminate that maintenance concern entirely. The smart features also send alerts to your phone if there are any issues. If your current smoke detectors are over 10 years old or frequently chirping, it’s time for an upgrade – contact us to schedule a detector replacement.
What makes modern GFCI outlets different from regular outlets?
GFCI outlets monitor the electrical current flowing through the hot and neutral wires. If they detect even a 5-milliamp difference – indicating current is leaking to ground – they shut off power in 1/40th of a second. This prevents dangerous shocks in wet locations like bathrooms, kitchens, and pool areas. Modern GFCI outlets also include tamper-resistant features to protect children. Need GFCI protection added to your home? Book an assessment to see which areas would benefit.
