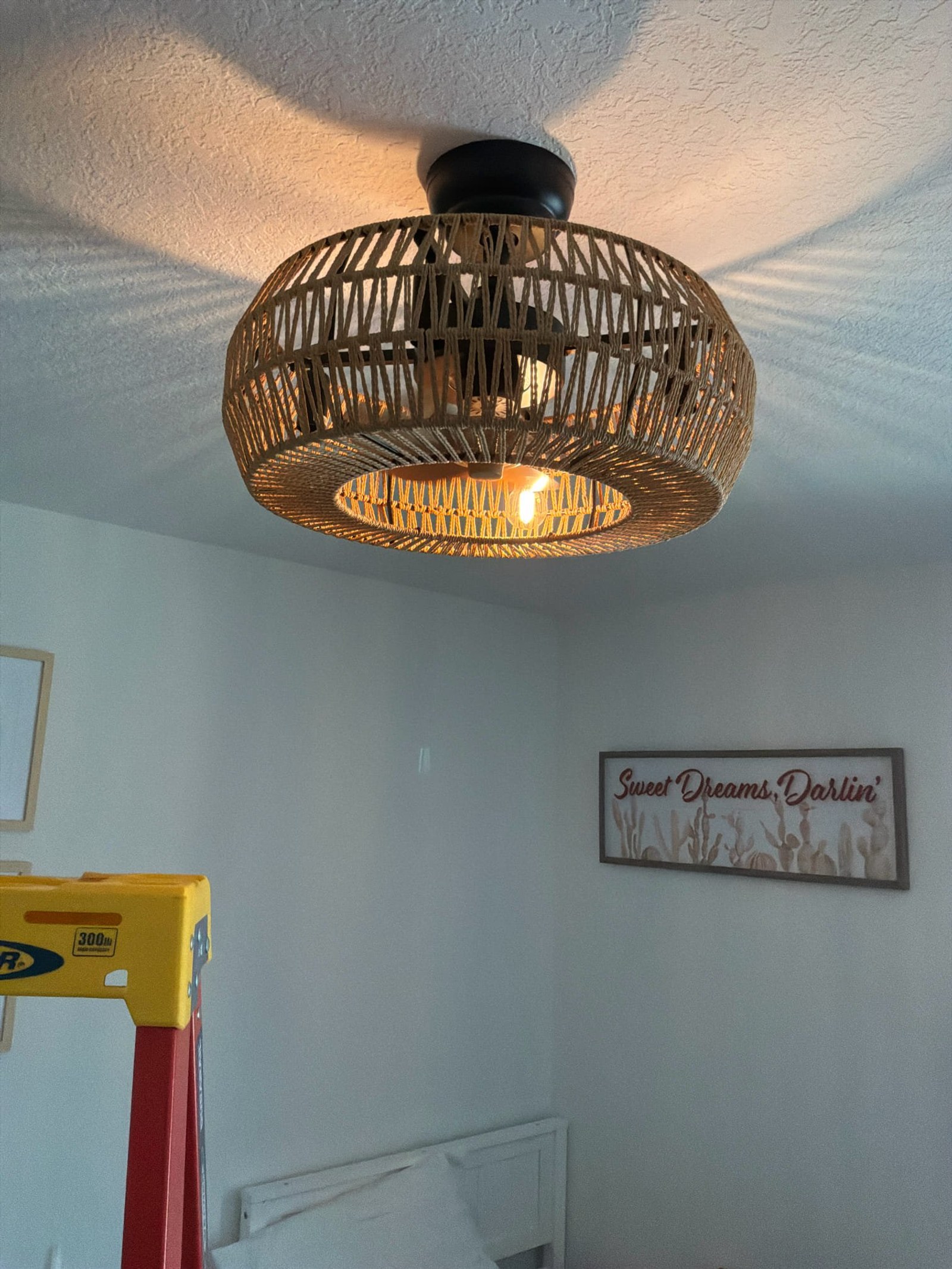

What started as a simple ceiling fan installation for a homeowner in Lutz, FL turned into a comprehensive electrical safety upgrade when our inspection revealed several opportunities to bring the home up to current NEC 2023 standards. We installed a PSP Vortex 120 kA whole-house surge protector, upgraded five smoke/CO detectors throughout the home, and addressed wiring connections that predated modern installation practices.
The Problem
The homeowner contacted us for a straightforward request: help disassembling an existing ceiling fan and installing a new one in the same location. However, they mentioned difficulty completing a bathroom outlet replacement project on their own.
“Need help disassembling existing fan and installing new ceiling fan into existing mounting. Small project. 10 ft ceiling. Standard height.”
Investigation

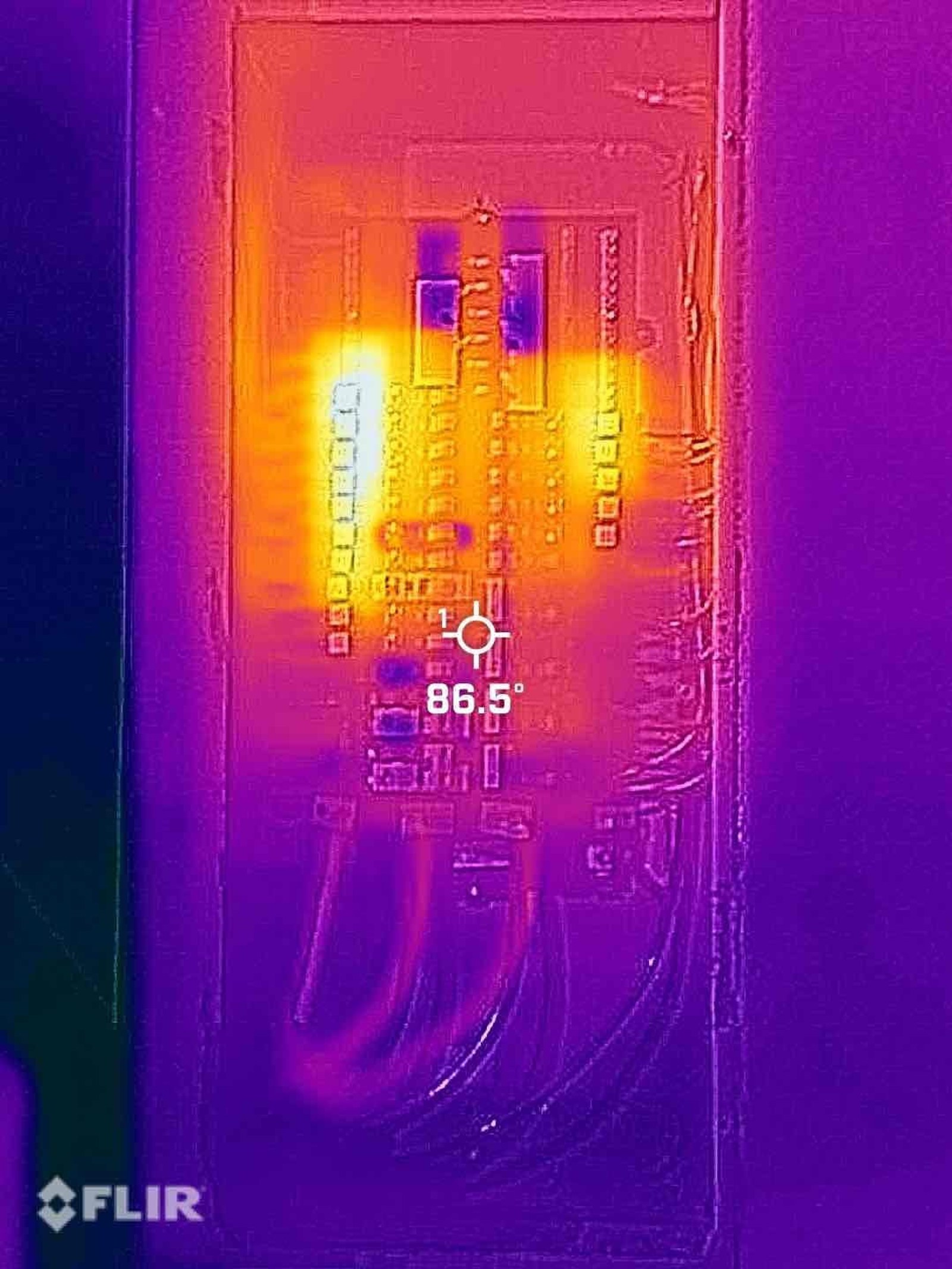

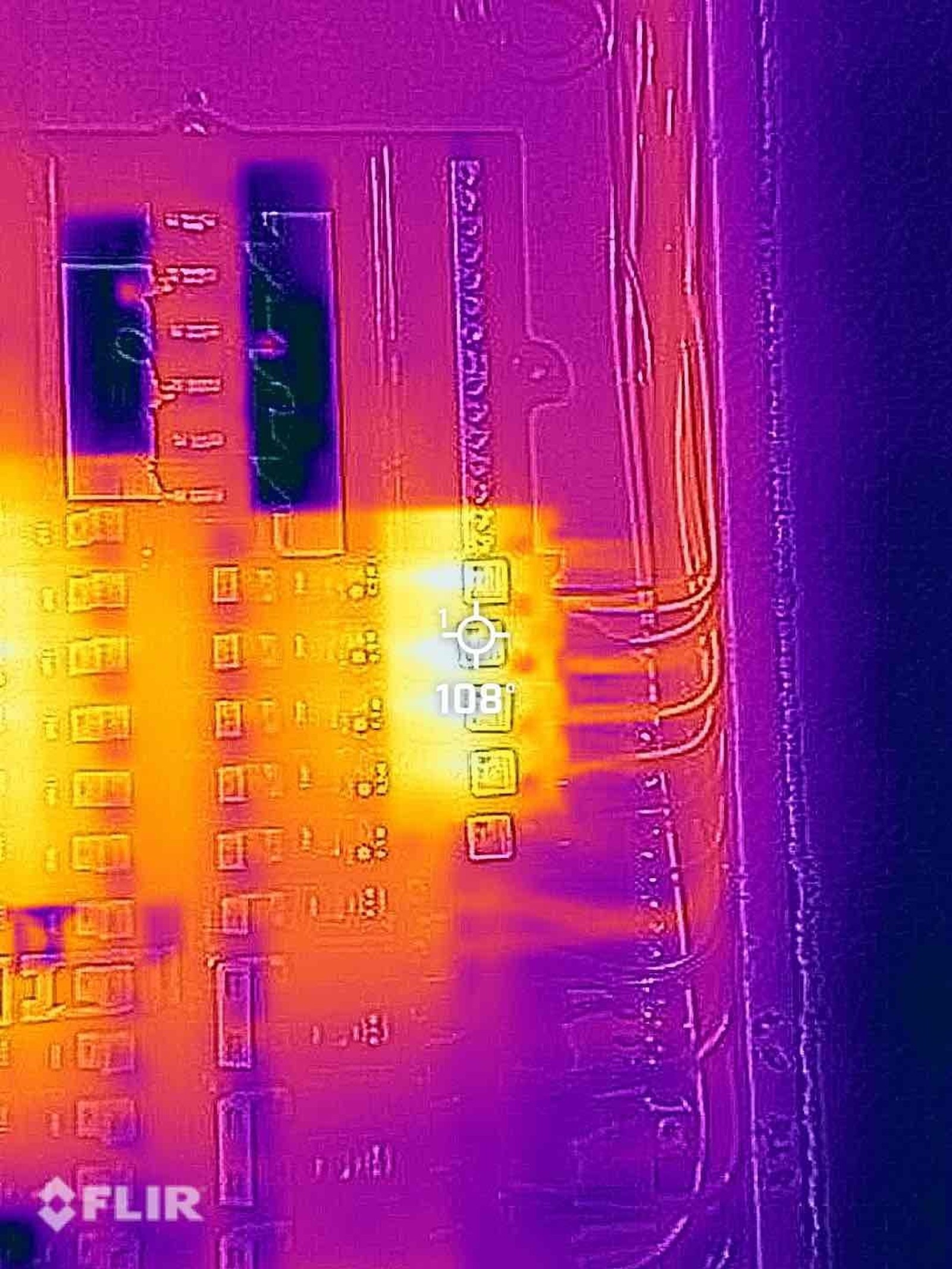

During our safety inspection, Ryan discovered several conditions common in homes of this era. First, outlets and switches throughout the home used backstab connections – a time-saving technique from earlier decades where wires are pushed into spring-loaded slots rather than secured with screws. Additionally, we found that one kitchen outlet wasn’t GFCI-protected, the master bathroom was missing GFCI protection, and pool equipment lacked proper GFCI safeguards.
Furthermore, the home had no whole-house surge protection and was missing smoke detectors in required areas. The existing grounding system showed its age, and some wire connections lacked proper securing connectors. The electrical panel needed updates including proper bushings and AFCI breakers to meet current standards.
What We Fixed
We installed a PSP Vortex 120 kA whole-house surge protector directly onto the GE panel to protect against voltage spikes from lightning and utility fluctuations. This unit connects to Square D HomeLine breakers, including the new HOM240 40-amp two-pole breaker we installed specifically for the surge protection device.
Next, we upgraded five locations throughout the home with 10-year sealed lithium smoke/CO combination detectors featuring smart connectivity. These units provide both smoke and carbon monoxide detection with a sealed battery that lasts the detector’s full 10-year lifespan.
For the bathroom project the homeowner had started, we completed the outlet replacement with proper wiring techniques, installing a tamper-resistant single receptacle in a new old-work box. We also replaced a decorator switch using screw-terminal connections instead of backstab methods.
Finally, we installed a THQP230 30-amp two-pole breaker to properly protect specific equipment circuits and added a cord cap to existing wiring that needed proper termination.
Why This Matters for Homeowners
Backstab connections were a common installation method before about 2005, when the spring-loaded terminals provided adequate contact. However, over time these connections can loosen, creating intermittent issues and increased resistance. Modern screw-terminal connections provide a more reliable long-term installation.
Whole-house surge protection has become increasingly important as homes contain more sensitive electronics. Meanwhile, the combination smoke/CO detectors with 10-year sealed batteries eliminate the need for regular battery replacement while providing enhanced protection through interconnected smart features.
These updates bring the home in line with NEC 2023 requirements while adding layers of protection that weren’t standard when the home was originally wired. The work represents a thoughtful approach to modernizing electrical safety systems.
Code Compliance Cited in This Job
Every fix above maps to a specific section of NEC 2023. Each card links to NFPA’s public NEC index.
GFCI Protection Requirements
This section requires GFCI protection in bathrooms, kitchens, and around pools. The upgrades we performed ensure these areas now meet current protection standards that have expanded significantly since the home’s original construction. NFPA reference ›
AFCI Protection
Arc-fault circuit interrupter protection is now required for most 15 and 20-amp branch circuits in residential occupancies. Adding AFCI breakers helps detect and interrupt dangerous arcing conditions that can occur in aging wiring systems. NFPA reference ›
Surge Protective Device Installation
This section covers proper installation of Type 2 surge protective devices like the PSP Vortex unit we installed. The device must be connected to a dedicated circuit and properly marked, which ensures optimal protection for the home’s electrical system. NFPA reference ›
Electrical Connection Requirements
Proper electrical connections must be secure and made with approved methods. Replacing backstab connections with screw-terminal connections provides the reliable contact required by this section for long-term electrical safety. NFPA reference ›
Common Questions
Questions homeowners ask after seeing this kind of work.
How often should I have my home’s electrical system inspected?
We recommend yearly electrical inspections for most homes, with older homes built before 1990 potentially benefiting from more frequent checks. Regular inspections can identify aging components like backstab connections before they cause issues. If you haven’t had an inspection recently, our team can schedule a comprehensive safety check to give you peace of mind.
What are backstab connections and why do they need replacement?
Backstab connections use spring-loaded terminals to hold wires in place, which was common before 2005. Over time, these springs lose tension and create loose connections that can cause flickering lights or intermittent power issues. Replacing them with screw-terminal connections provides a more secure, long-lasting connection. If you’re experiencing electrical quirks in an older home, book an inspection to check your connections.
Do I really need a whole-house surge protector if I use power strips?
Whole-house surge protection works differently than power strips by protecting your entire electrical system at the panel level. This protects hardwired appliances like HVAC systems, well pumps, and built-in equipment that power strips can’t reach. Additionally, it provides the first line of defense before surges reach your individual devices. To learn if your home would benefit from surge protection, schedule a consultation with our team.
How do I know if my smoke detectors meet current code requirements?
Current code requires interconnected smoke/CO detectors in specific locations throughout the home, with 10-year sealed batteries in newer installations. If your detectors are over 10 years old or use replaceable batteries, they likely need updating. Modern smart detectors also provide enhanced features like smartphone alerts and voice announcements. Our team can assess your current detector setup and recommend appropriate upgrades.
What should I expect during a comprehensive electrical safety inspection?
A thorough inspection covers your electrical panel, outlets, switches, GFCI/AFCI protection, grounding systems, and safety devices throughout the home. We check for code compliance, aging components, and potential improvement opportunities without any pressure to make immediate changes. The inspection gives you a clear picture of your home’s electrical health and helps prioritize any future upgrades. Ready to get started? Book your inspection online or call our Clearwater office.
